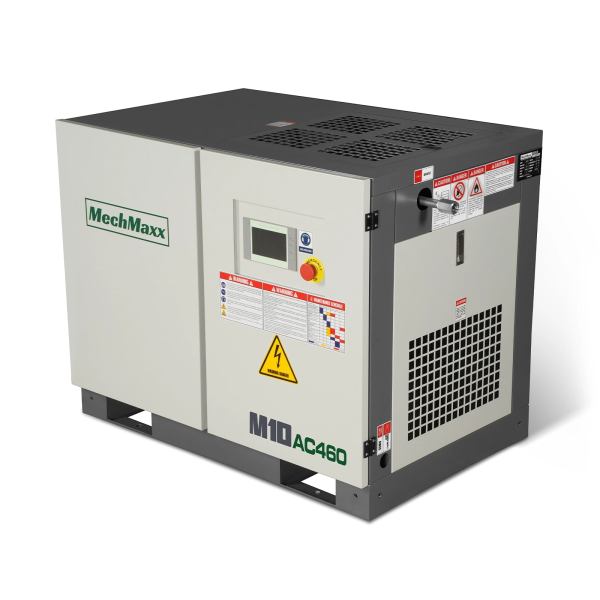

10HP Rotary Screw Air Compressor - 32 CFM, 116 PSI, 460V 3-Phase | Industrial-Grade
Delivery in 10 - 15 Business Days
| Model | M10AC460 |
| Voltage | 460V 3PH 60HZ（L1+L2+L3,G） |
| Air Flow Capacity | 32.8CFM |
| Wire Gauge | AWG9 |
| Air Outlet Thread | 1/2"NPT |
| Oil Tank Capacity | 1.05Gal (4L) |
| Maximum Current | 14.5A |
| Rated Power | 10HP |
| Rated Pressure | 116 PSI (0.8 MPa) |
| Noise Level | 65dba |
| Motor Speed | 3500RPM |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Recommended Oil Grade | S3R46 |
| Oil Sight Glass | Yes |
| Pump Drive | Belt Drive |
| Standard Adaptor | 1/2"NPT |
| Machine Size: | 39.3" x 28.3" x 31.5" |
| Packing Size: | 41.3" x 29.5" x 37.4" |
| N.W.:/ G.W.: | 419 lbs/473 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
No reviews yet. Be the first to leave one!
Write a Review
10HP Rotary Screw Air Compressor – 32 CFM, 116 PSI, 460V 3-Phase | Industrial-Grade
$2,799.00
