SKU: 500307

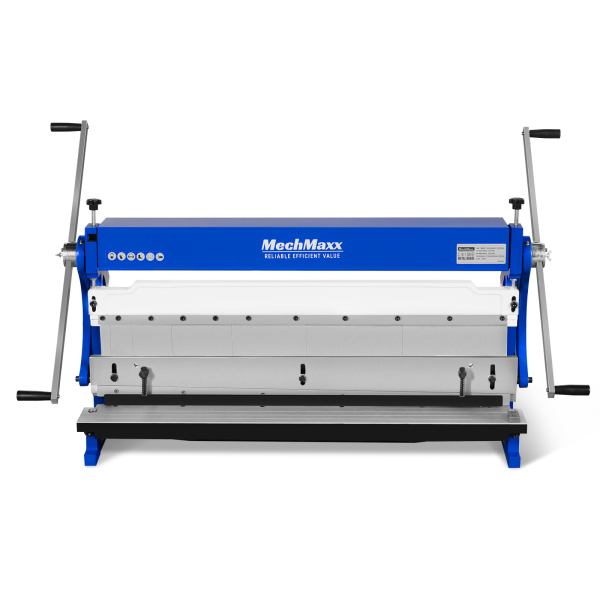

40-inch 3-in-1 Pan and Box Brake – Slip Roll, Shear, Bending Machine for Sheet Metal, 20 Gauge Mild Steel, Adjustable Fingers, Heavy Duty, Metalworking, Fabrication, Rolling, Bending MMCB4020

Name: 40-inch 3-in-1 Pan and Box Brake – Slip Roll, Shear, Bending Machine for Sheet Metal, 20 Gauge Mild Steel, Adjustable Fingers, Heavy Duty, Metalworking, Fabrication, Rolling, Bending MMCB4020
SKU: 500307
Price: 1399.00 USD
Availability: InStock

40-inch 3-in-1 Pan and Box Brake – Slip Roll, Shear, Bending Machine for Sheet Metal, 20 Gauge Mild Steel, Adjustable Fingers, Heavy Duty, Metalworking, Fabrication, Rolling, Bending MMCB4020

^$1,399⁰⁰

$1,699.00

Save $300

Starting at $75.27/mo or as low as 0% APR.

FREE SHIPPING. Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days

Add to Cart

Payment:

Slip Roll Function	Minimum Rolling Diameter	1.57" (40 mm)
	Maximum Rolling Thickness	20 Ga. mild steel
	Wire Sizes	3/16", 1/4", 5/16"
	Roller Type	Slip Rollers for straightening and forming cylinders, cones, and arcs
Brake Function	Maximum Bending Angle	90°
	Maximum Bending Thickness	20 Ga. mild steel
	Minimum Reverse Bend	1/2"
	Maximum Height of Pan/Box Brake Sides	2-3/8"
Shear Function	Shearing Capacity	20 Ga. mild steel
	Blades	Reversible upper shear blade and fixed lower table blade
	Cutting Method	The upper movable shear blade lowers past the fixed table blade to shear the workpiece
	Shear Length	40" (maximum cutting length)
Built for Longevity	Blade Adjustment	Adjustable for varying thickness and material types
	Construction	Built with heavy-duty cast iron for durability and long-term reliability
	Finger Dies	Adjustable for pans and boxes of varying sizes
	Surface Construction	Surface-ground cast-iron construction for smooth operation
	Packing Size (LxWxH)	49.13"(1248mm) × 17.56"(446mm) × 28.19"(716mm)
	N.W./G.W.	399.04 / 465.17 lbs (181 / 211 kg)

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
