SKU: 500003

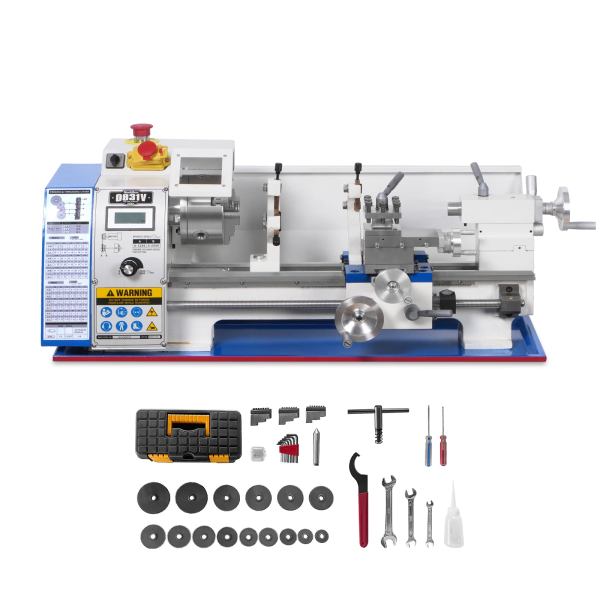

1.5‘’ Spindle Bore Metal Lathe Machine 8'' x 16'' High Precision Brushless Motor Mini 1.5HP Benchtop 0-2500 RPM Variable Speed Metal Working Machine 1.5‘’ Spindle Bore Small Lathe without Stand 0831V

Name: 1.5‘’ Spindle Bore Metal Lathe Machine 8'' x 16'' High Precision Brushless Motor Mini 1.5HP Benchtop 0-2500 RPM Variable Speed Metal Working Machine 1.5‘’ Spindle Bore Small Lathe without Stand 0831V
SKU: 500003
Price: 1499.00 USD
Availability: InStock

1.5‘’ Spindle Bore Metal Lathe Machine 8'' x 16'' High Precision Brushless Motor Mini 1.5HP Benchtop 0-2500 RPM Variable Speed Metal Working Machine 1.5‘’ Spindle Bore Small Lathe without Stand 0831V

^$1,499⁰⁰

$1,899.00

Save $400

Starting at $80.65/mo or as low as 0% APR.

FREE SHIPPING. Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days

Add to Cart

Payment:

Motor	1.5 HP, 110V, Single-Phase, 10A, 60Hz
Swing Over Bed	8‑1/4"(210mm)
Swing Over Cross Slide	4‑5/8"(117mm)
Swing Over Saddle	3-1/2"(90mm)
Distance Between Centers	15‑3/4"(400mm)
Bed Width	4"(100mm)
Spindle Bore	1-1/2"(38mm)
Spindle Mount	Intrinsic back plate
Spindle Type	One-piece Spindle
Spindle Taper	MT#5
Tailstock Taper	MT#2
Tailstock Quill Travel	2"(50mm)
Cross Slide Travel	3-1/2"(90mm)
Compound Slide Travel	2-3/4"(70mm)
Carriage Travel	14-5/16(350mm)
Spindle Speeds	0–2500 RPM
Number of Speed Ranges	Variable
Longitudinal Feeds	0.0037-0.0068 in./rev.
Transverse Feed Rate	/
Leadscrew Size & Pitch	16mm(12TPI)
Threading Capacity - Inch	8–48 TPI（18kinds）
Threading Capacity - Metric	0.4–3.5mm(15kinds)
Maximum Tool Bit Size	15/32"(12mm)
Thread Dial Indicator	YES
Overall Dimensions	36" W x 19" D x 20" H (914 x 480 x 490 mm)
Approximate Shipping Weight	190lbs(75 kg)

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
