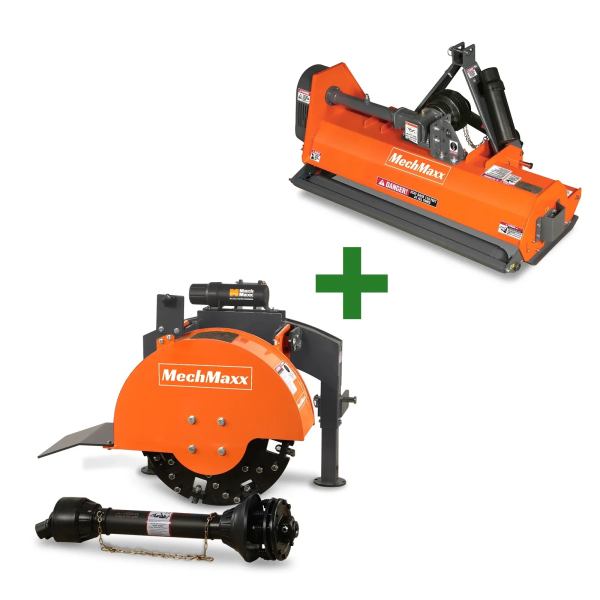

3-Point PTO Stump Grinder & 48'' PTO Flail Mower Combo, SG24&EFS48
Save $1,470
Delivery in 10 - 15 Business Days
3-Point PTO Stump Grinder
| Flywheel Diameter | 24 in | Mounting | 3 Point Hitch Cat. 1 (Quick Attach Compatible) |
| Flywheel Thickness | 3/4 in | PTO Input | 540 RPM |
| Carbid Tip | 34 PCS | Max. Torque | 1200 N·m |
| Carbid Tip Material | YG11C | PTO Shaft Weight | 44 LBS |
| Tip Holder Material | 42CrMo | Dimensions | 29 × 37 × 38 in |
| PTO HP Required | 15–45 HP | Packing | Iron Frame + Carton |
| PTO Shaft (Included Shipping) | 1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch | Weight (N.W/G.W.) | 450/563 LBS |
| Friction Torque Limiter (Slip Clutch) | Included |
48'' PTO Flail Mower
| Engine Power Required | 15-35HP | Blade Speed | 142 ft/s |
| Working Width | 48in | Drive Type | Belt drive |
| Overall Width | 56in | Number Of Belts | 3 |
| Blade Ground Clearance | 0.6in-1.8in | Belt Size | V Belt 13X1041 |
| Max. Cutting Diameter | Depends On The Type Of Grass | Drive Belt Tensioner | yes |
| Number Of Blades | 20 | Deck Material | 0.16in |
| Blade Type | Hammer | Side Plate Material | 0.24in |
| Size Of Blades | 3.5 X 3 X 1.6in | PTO Shaft RPM | 540 RPM |
| Blade Weight | 0.8lbs | Driveline Shaft Length | T5-LF-31 with shear bolt ；31in- 43in |
| Blade （Tines）Material | Cast Steel | Spline End | 1.375in z6 |
| Rotor Bearing | SKF bearing | Gearbox Oil Type | 85W-90 |
| Rotor Diameter | 3in | Dimensions (L x W x H) | 57 X 30 X 28in |
| Rotor Swing Diameter | 11in | Finish | Powder Coating |
| Rotor Thickness | 0.3in | Warranty | 1 year |
| Rotor Shaft Speed | 2958 rpm | Weight (N.W./G.W.) | 379/470 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
No reviews yet. Be the first to leave one!
Write a Review
3-Point PTO Stump Grinder & 48” PTO Flail Mower Combo, SG24&EFS48
Original price was: $4,368.00.$2,898.00Current price is: $2,898.00.
