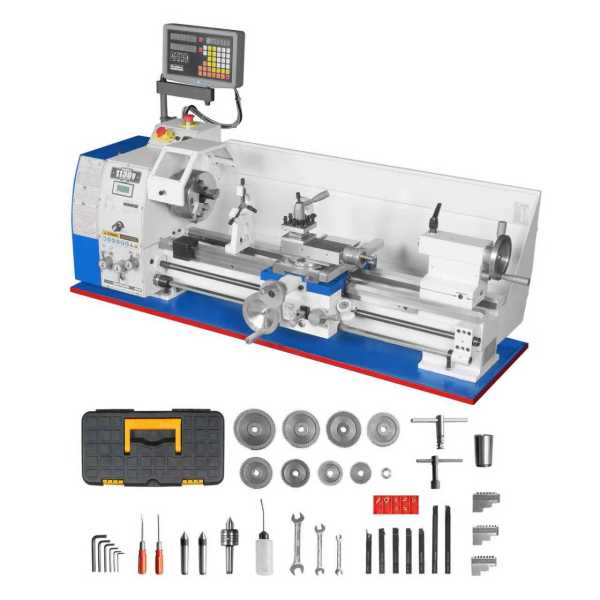

Metal Lathe Machine with DRO 11'' x 30'' High Precision Benchtop 0-2000 RPM Brushless Motor Variable Speed Metal Working Machine 2HP Small Lathe without Stand 1130VD

Name: Metal Lathe Machine with DRO 11'' x 30'' High Precision Benchtop 0-2000 RPM Brushless Motor Variable Speed Metal Working Machine 2HP Small Lathe without Stand 1130VD
SKU: 500008
Price: 4099.00 USD
Availability: InStock

Metal Lathe Machine with DRO 11'' x 30'' High Precision Benchtop 0-2000 RPM Brushless Motor Variable Speed Metal Working Machine 2HP Small Lathe without Stand 1130VD

^$4,099⁰⁰

$4,299.00

Save $200

Starting at $220.53/mo or as low as 0% APR.

FREE SHIPPING. Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days

Add to Cart

Payment:

Motor	2 HP, 110V, Single-Phase, 20A, 60HZ
Swing Over Bed	11-2/5"(290mm)
Swing Over Cross Slide	7-1/4"(185mm)
Swing Over Saddle	5-3/4"(147mm)
Distance Between Centers	29-1/2"(750mm)
Bed Width	7"(180mm)
Spindle Bore	1-1/2" (38 mm)
Spindle Mount	D1-4
Spindle Type	One-piece Spindle
Spindle Taper	MT#5
Tailstock Taper	MT#3
Tailstock Quill Travel	3-1/8"(85mm)
Cross Slide Travel	5-3/4"(147mm)
Compound Slide Travel	3-3/8"(86mm)
Carriage Travel	27-1/2" (700 mm)
Spindle Speeds	0–2000 RPM
Number of Speed Ranges	Variable
Longitudinal Feeds	0.017-0.25mm/R(0.0007-0.0098 in./rev.)
Transverse Feed Rate	0.07-0.53mm/r(0.0027-0.02in./rev)
Leadscrew Size & Pitch	20mm(8TPI)
Threading Capacity - Inch	8-56TPI(21KIDS)
Threading Capacity - Metric	0.4-3.5 mm(12kids)
Maximum Tool Bit Size	15/32''(12mm)
Thread Dial Indicator	YES
Overall Dimensions	59" X 31" X 30"(1400X750X740MM)
N.W/G.W	517/572lbs(235/260kg)

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
