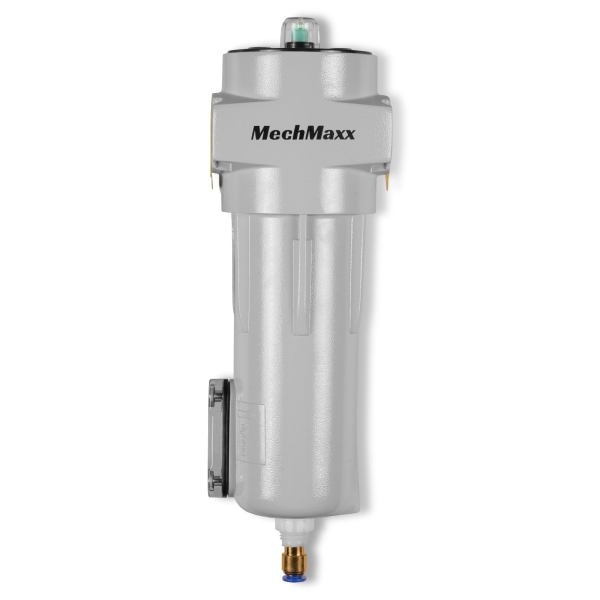

63 CFM Compressed Air Oil-Water Separator Precision Filter,0.01μm,Oil Content 0.001ppm, With Auto Drain, Pressure Indicator
Delivery in 10 - 15 Business Days
| MODEL | CAF153 |
| Configuration | Differential Pressure Indicator Liquid Sight Glass Internal Automatic Drain |
| Max Flow | 63.6 CFM |
| Inlet/Outlet Thread | 1/2"NPT |
| Max Op. Pressure | 145PSI/1.0MPa |
| Max Op. Temp. | 176℉/80℃ |
| Min Op. Temp. | 34.7℉/1.5℃ |
| Filter Efficiency | 0.01μm |
| Oil Content | 0.001ppm |
| Maximum Burst Pressure | 1,523PSI/10.5MPa |
| Solid Particle Filtration Efficiency | 99.999+% |
| Oil Filtration Efficiency | 99.99+% |
| Residual Oil Concentration | ＜0.001mg/m³ |
| Model Of Element | CAF153F（SKU:480071） |
| Weight | 3.1LB |
| Size（W*D*H） | 3.5×3.1×11in |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
No reviews yet. Be the first to leave one!
Write a Review
63 CFM Compressed Air Oil-Water Separator Precision Filter,0.01μm,Oil Content 0.001ppm, With Auto Drain, Pressure Indicator
$199.99
