SKU: 500309

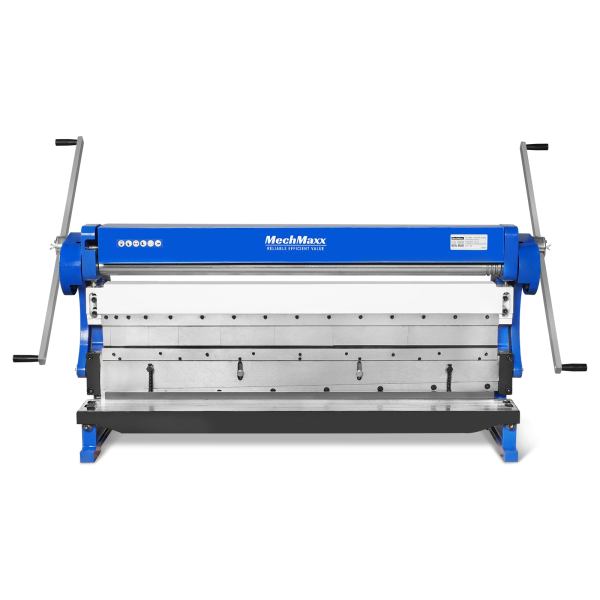

52-inch 3-in-1 Heavy Duty Pan and Box Brake – Slip Roll, Shear, Bending Machine for Sheet Metal, 16 Gauge Mild Steel, Adjustable Fingers, Heavy Duty, Metalworking, Fabrication, Rolling, Bending MMCB5216

Name: 52-inch 3-in-1 Heavy Duty Pan and Box Brake – Slip Roll, Shear, Bending Machine for Sheet Metal, 16 Gauge Mild Steel, Adjustable Fingers, Heavy Duty, Metalworking, Fabrication, Rolling, Bending MMCB5216
SKU: 500309
Price: 2779.00 USD
Availability: InStock

52-inch 3-in-1 Heavy Duty Pan and Box Brake – Slip Roll, Shear, Bending Machine for Sheet Metal, 16 Gauge Mild Steel, Adjustable Fingers, Heavy Duty, Metalworking, Fabrication, Rolling, Bending MMCB5216

^$2,779⁰⁰

$3,500.00

Save $721

Starting at $149.51/mo or as low as 0% APR.

FREE SHIPPING. Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days

Add to Cart

Payment:

Slip Roll Function	Minimum Rolling Diameter	2.36" (60 mm)
	Maximum Rolling Thickness	16 Ga. mild steel
	Wire Sizes	3/16", 1/4", 5/16"
	Roller Type	Slip Rollers for straightening and forming cylinders, cones, and arcs
Brake Function	Maximum Bending Angle	90°
	Maximum Bending Thickness	16 Ga. mild steel
	Minimum Reverse Bend	1/2"
	Maximum Height of Pan/Box Brake Sides	2-3/8" (60 mm)
	Finger Configuration	9 adjustable fingers: 1", 2", 3", 4", 5-1/2", 7", 8", 10", 10"
Shear Function	Shearing Capacity	16 Ga. mild steel
	Blades	Reversible upper shear blade and fixed lower table blade
	Cutting Method	Upper movable shear blade lowers past the fixed table blade
	Shear Length	52" (maximum cutting length)
	Blade Adjustment	Adjustable for varying thickness and material types

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
