SKU: 500310

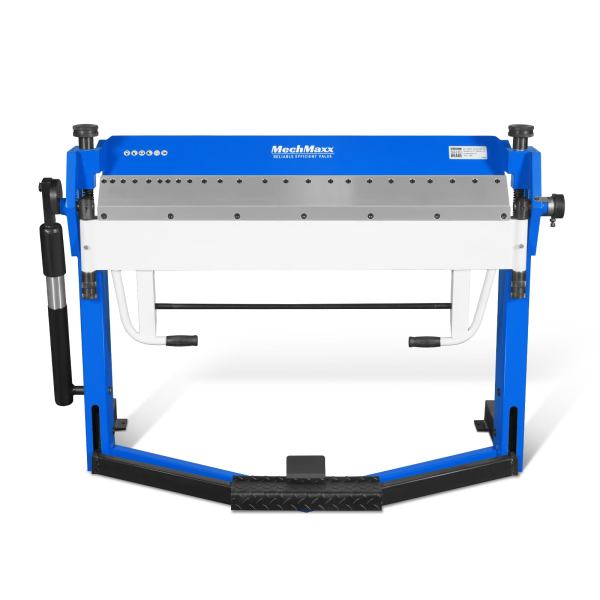

50-Inch Foot Clamp Pan and Box Brake, Light Duty Sheet Metal Folding Machine, 0–135° Bending Angle, 1.9" Clamping Lift, 2" Box Depth PBA5014
$2,89900
$3,499.00
Save $600
Save $600
Starting at $155.97/mo or as low as 0% APR.
FREE SHIPPING. Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days
Delivery in 10 - 15 Business Days
Payment:
| Maximum Working Length | 50 in (1270 mm) |
| Maximum Sheet Thickness | 14 Ga. mild steel (≈2.0 mm) |
| Maximum Clamping Bar Lift | 1.9 in (48 mm) |
| Maximum Box Depth | 2 in (50 mm) |
| Folding Angle Range | 0° – 135° |
| Upper Blade | Removable segments for box & pan forming |
| Adjustment | Quick-adjust blade gap knobs |
| Assist Mechanism | Spring-loaded cylinders for reduced operator effort |
| Control | Foot pedal clamp for hands-free operation |
| Frame Construction | Fully welded steel body, reinforced for stability |
| Back Gauge | Optional, with pre-drilled mounting points |
| Packing Size | 66.9 × 28 × 50 in |
| Net / Gross Weight | 794 / 924 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
