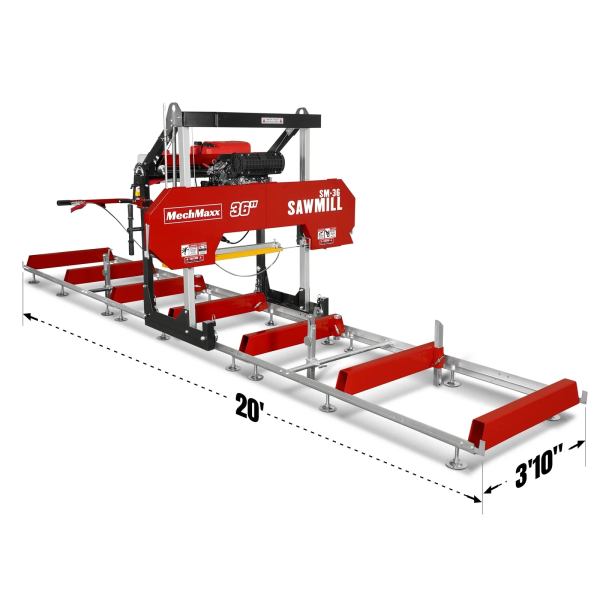

36" MAX Portable Sawmill, 25HP 750cc ZONSEN V-Twin Engine, 35" Board Width, 20' Track Length, (10 x Blades Included), SM-36MAX
Save $500
Delivery in 10 - 15 Business Days
| Engine | ZONSEN GB750 | Lubricant Tank Size | 4 gal |
| Engine Type | Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling | Fuel Tank Size | 6.3 gal |
| Engine Displacement | 750 cc | Track Load-Bearing | 5 ton |
| Horsepower | 25 HP | Track Width | 3 ft 10 in |
| Start | E-Start | Track Length | 20 ft |
| Log Diameter | 36 in | Track Extension Length | 6.4 ft |
| Max Live Edge Width | 35 in | Leveling Feet | 18 |
| Standard Cutting Length | 16.2 ft | Log Rests | 2 Long and 2 Short Rests |
| Max Board Thickness | 7 in | Log Clamps | 2 x Quick Lock |
| Blade Engagement System | Centrifugal Clutch | Track Bunks | 3 X 6 in |
| Cast Iron Bandwheel Diameter | 19 in | 4 Post Head Design | Yes |
| Blade Wheel Engagement | Belt Drive | Finish | Powder Coat Paint Galvanized Steel |
| Blade Guide | By Roller | Sawmill Warranty | 2 Years |
| Blade Tension | By Adjustable Lever | Engine Warranty | 2 Years |
| Blade Size | 175 x 1.3 in | Package Method | Wood |
| Blade Pitch | 7/8 in | Packing Size | 90 x 28.5 x 34 in |
| Blade Lubrication | Water Lube - Manual Valve | Weight(N.W./G.W.) | 1115/1239 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
No reviews yet. Be the first to leave one!
Write a Review
36″ MAX Portable Sawmill, 25HP 750cc ZONSEN V-Twin Engine, 35″ Board Width, 20′ Track Length, (10 x Blades Included), SM-36MAX
Original price was: $4,899.00.$4,399.00Current price is: $4,399.00.
