SKU: 150414

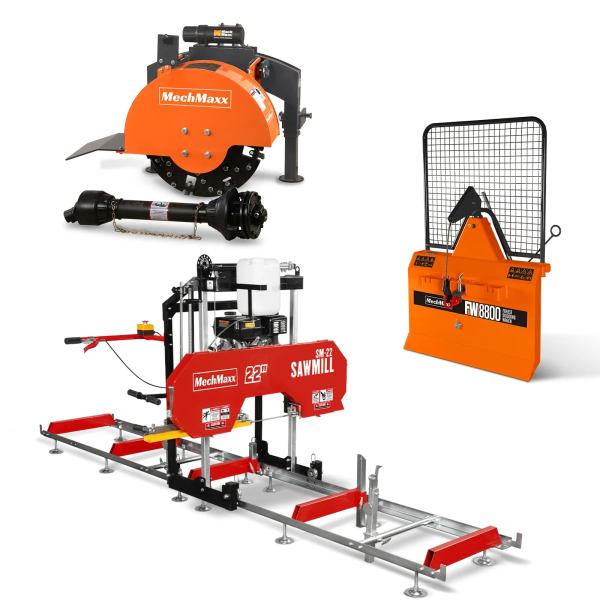

3-Point PTO Stump Grinder & 22" Portable Sawmill & Forestry Log Skidding Winch Combo,SG24 & SM22 &FW8800

Name: 3-Point PTO Stump Grinder &amp; 22" Portable Sawmill &amp; Forestry Log Skidding Winch Combo,SG24 &amp; SM22 &amp;FW8800
SKU: 150414
Price: 5397.00 USD
Availability: InStock

3-Point PTO Stump Grinder & 22" Portable Sawmill & Forestry Log Skidding Winch Combo,SG24 & SM22 &FW8800

^$5,397⁰⁰

$8,697.00

Save $3,300

Starting at $290.36/mo or as low as 0% APR.

FREE SHIPPING. Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days

Add to Cart

Payment:

3-Point PTO Stump Grinder

Flywheel Diameter	24 in	Mounting	3 Point Hitch Cat. 1 (Quick Attach Compatible)
Flywheel Thickness	3/4 in	PTO Input	540 RPM
Carbid Tip	34 PCS	Max. Torque	1200 N·m
Carbid Tip Material	YG11C	PTO Shaft Weight	44 LBS
Tip Holder Material	42CrMo	Dimensions	29 × 37 × 38 in
PTO HP Required	15–45 HP	Packing	Iron Frame + Carton
PTO Shaft (Included Shipping)	1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch	Weight (N.W/G.W.)	450/563 LBS
Friction Torque Limiter (Slip Clutch)	Included

22" Portable Sawmill

Engine	DUCAR DH275	Lubricant Tank Size	2.6 gal
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV	Track Load-Bearing	2 ton
Engine Displacement	274 cc	Track Width	2 ft 2 in
Horsepower	8.1 HP	Track Length	13 ft
Start	Recoil	Track Extension Length	6.4 ft
Log Diameter	22 in	Leveling Feet	12
Max Live Edge Width	18 in	Log Rests	2 Long and 2 Short Rests
Standard Cutting Length	10.4 ft	Log Clamps	2 x Quick Lock
Max Board Thickness	6 in	Track Bunks	1.6 x 3.9 in
Blade Engagement System	Centrifugal Clutch	4 Post Head Design	Yes
Cast Iron Bandwheel Diameter	16.5 in	Finish	Powder Coat Paint Galvanized Steel
Blade Wheel Engagement	Belt Drive	Sawmill Warranty	2 Years
Blade Guide	By Roller	Engine Warranty	1 Year
Blade Tension	By Adjustable Lever	Package Method	Wood
Blade Size	127 x 1.3 in	Packing Size	87 x 19 x 32 in
Blade Pitch	7/8 in	Weight (N.W./G.W.)	509/600 lbs
Blade Lubrication	Water Lube - Manual Valve

Forestry Log Skidding Winch

Recommended Tractor Power	25-60hp
Pulling Capacity	8800lbs
Winch Type	Mechanical, Dry Disc Clutch
Average Winching Speed	180 ft/minute
Cable Length	200 ft
Cable Diameter	3/8 in
Cable Type	Steel
Tractor CAT	CAT 1
PTO Input Speed	540 RPM
PTO Shaft	1-3/8in 6 Spline Tractor， With Shear Bolt
Dimensions	47 X 20 X 71 in
Packing Size	49 x 21 x 73 in
Weight (N.W/G.W.)	602/659 lbs
