SKU: 500304

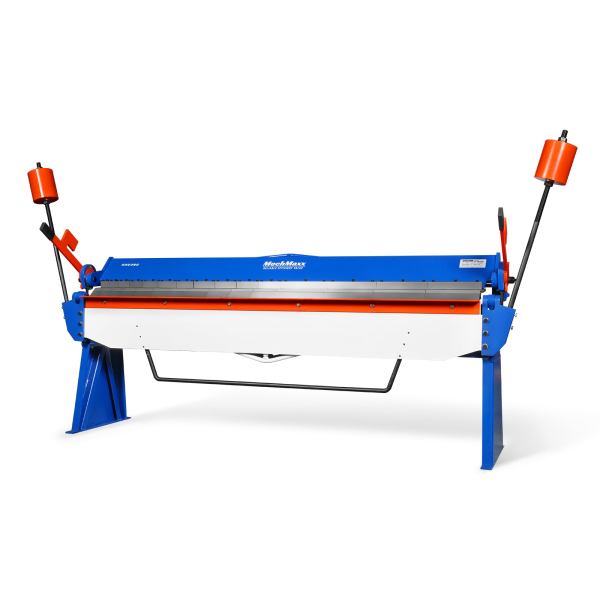

100-inch Manual Sheet Metal Brake - 12 Gauge Bending Capacity, Adjustable Fingers, 8 Ft. Heavy-Duty Steel Construction, Precision Bending for Box and Pan PB10012
$9,79900
$12,000.00
Save $2,201
Save $2,201
Starting at $527.19/mo or as low as 0% APR.
FREE SHIPPING. Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days
Delivery in 10 - 15 Business Days
Payment:
| Max Bending Length | 100 in (8 ft) |
| Max Bending Thickness | 12 Gauge Mild Steel (2.5 mm) |
| Bending Angle | 0° to 135° |
| Max Box Depth | 6 in (152 mm) |
| Shut Height | 4 in (102 mm) |
| Max Lift of Beam | 1 in (25 mm) |
| Beam Adjustment | Manual |
| Finger Configuration | 2.5" x 1, 3" x 1, 3.5" x 1, 4" x 1, 5" x 3, 6" x 4, 12" x 4 |
| Material | High-strength Steel Frame |
| Max Capacity | 12 Gauge Mild Steel (0.105 in, 2.5 mm) |
| Beam Type | Box Beam with Reinforced Ribs |
| Packaging Dimensions | 110" x 32" x 45" (2800 mm x 820 mm x 1143 mm) |
| Shipping Weight | Approx. 2,700 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
