SKU: 500006

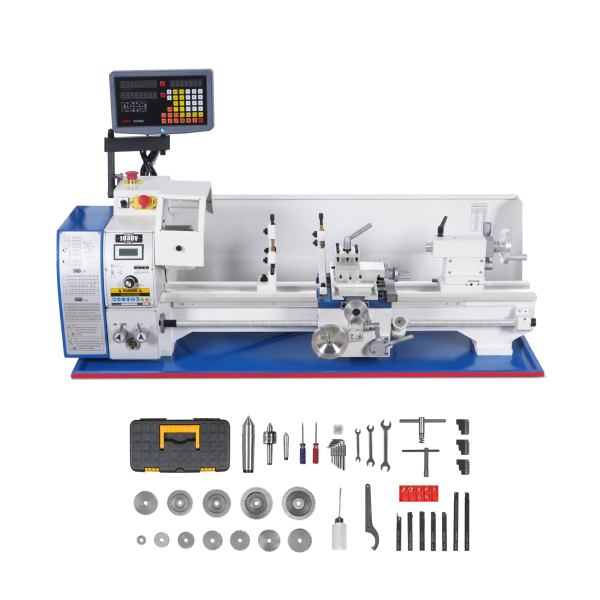

1.5‘’ Spindle Bore Metal Lathe Machine with DRO 10'' x 30'' High Precision Benchtop 0-2000 RPM Variable Speed Metal Working Machine 1.5HP Small Lathe without Stand 1030VD

Name: 1.5‘’ Spindle Bore Metal Lathe Machine with DRO 10'' x 30'' High Precision Benchtop 0-2000 RPM Variable Speed Metal Working Machine 1.5HP Small Lathe without Stand 1030VD
SKU: 500006
Price: 3199.00 USD
Availability: InStock

1.5‘’ Spindle Bore Metal Lathe Machine with DRO 10'' x 30'' High Precision Benchtop 0-2000 RPM Variable Speed Metal Working Machine 1.5HP Small Lathe without Stand 1030VD

^$3,199⁰⁰

$3,399.00

Save $200

Starting at $172.11/mo or as low as 0% APR.

FREE SHIPPING. Liftgate service available for an additional fee at checkout.
Delivery in 10 - 15 Business Days

Add to Cart

Payment:

Motor	1.5 HP, 110V, Single-Phase, 10A, 60HZ
Swing Over Bed	9-7/8" (250 mm)
Swing Over Cross Slide	5-1/2" (140 mm)
Swing Over Saddle	5" (127 mm)
Distance Between Centers	29-1/2" (750 mm)
Bed Width	5-1/2" (140 mm)
Spindle Bore	1-1/2" (38 mm)
Spindle Mount	Intrinsic back plate
Spindle Type	One-piece Spindle
Spindle Taper	MT#5
Tailstock Taper	MT#2
Tailstock Quill Travel	3" (75 mm)
Cross Slide Travel	5" (127 mm)
Compound Slide Travel	3" (75 mm)
Carriage Travel	27-1/2" (700 mm)
Spindle Speeds	0–2000 RPM
Number of Speed Ranges	Variable
Longitudinal Feeds	0.0025 – 0.014 in./rev.
Transverse Feed Rate	0.0014 – 0.004 in./rev.
Leadscrew Size & Pitch	20mm(8TPI)
Threading Capacity - Inch	8–80TPI(37KINDS)
Threading Capacity - Metric	0.35 – 3.0 mm(21kinds)
Maximum Tool Bit Size	15/32''(12mm)
Thread Dial Indicator	YES
Overall Dimensions	52.0" × 25.0" × 19.0" (1320 × 635 × 480 mm)
Approximate Shipping Weight	399 lbs (181 kg)

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
